As engineers, our work is grounded in data. The cell datasheet is the starting point, a foundational document. However, treating its nominal values—capacity, voltage, internal resistance—as absolute truths for system design is a critical engineering misstep. These figures represent a single, idealized data point, typically captured at a benign 0.2C discharge rate and a comfortable 25°C.
Real-world energy storage systems operate within a dynamic, multi-variable matrix of load profiles and environmental conditions. The significant gap between a static datasheet value and a cell’s actual in-application performance is where designs falter. An undersized system, premature aging, or catastrophic failure can often be traced back to a failure to properly interrogate the datasheet and understand the cell’s performance envelope.
This article is not about questioning the validity of datasheets, but about providing a framework for their correct interpretation. We will deconstruct the two most influential variables that govern Lithium Iron Phosphate (LFP) cell performance: C-rate and temperature. By understanding their interplay, we can move from designing based on a single number to engineering based on a comprehensive performance map.
The C-Rate: A Measure of Kinetic Stress
Contents
At its most basic, the battery C-rate is a normalized expression of current relative to capacity. A 1C rate on a 100Ah cell means a 100A current. This is simple arithmetic. The crucial insight for an engineer, however, lies in understanding what this rate means for the electrochemical system.
High C-rates impose significant kinetic stress on the cell. A high current demand is, in effect, a demand for rapid lithium-ion transport—out of the graphite anode, through the electrolyte and separator, and into the LFP cathode during discharge. Each step in this process has an associated resistance. At higher currents, these resistances induce greater voltage drops, a phenomenon known as polarization.
We can break down the cell’s total internal resistance into three key components:
- Ohmic Resistance: The inherent resistance of the electrodes, current collectors, and electrolyte. This contributes to an instantaneous voltage drop under load.
- Charge Transfer Resistance: Occurs at the interface between the electrode and the electrolyte. It reflects the difficulty of stripping lithium ions from the active material.
- Diffusion Resistance: Relates to the speed at which lithium ions can move through the bulk of the electrode materials. This becomes particularly limiting at very low and very high states of charge (SoC).
A high C-rate battery is not simply one that can survive a high current; it is one that has been specifically engineered to minimize these sources of polarization—perhaps through thinner electrodes, enhanced electrolyte conductivity, or a more porous separator. This is a fundamental design trade-off against energy density. Therefore, understanding an application’s required power profile (both pulse and continuous) is the first step in filtering cell candidates. Wondering how to calculate c rate of battery requirements for a peak pulse versus a continuous load is a core design task.
Voltage Polarization and its Impact on Usable Capacity
The practical consequence of increased C-rate is a depressed voltage profile. Due to the aforementioned polarization effects, the cell’s terminal voltage under a 2C load will be substantially lower than under a 0.2C load.
This has a critical impact on usable capacity. LFP cells have a famously flat voltage plateau, but the discharge cycle is always terminated at a predefined lower cutoff voltage (e.g., 2.5V). When the operating voltage is depressed by a high C-rate, the cell’s voltage curve will intersect this cutoff point much earlier in the discharge. The result is a significant reduction in the delivered Ah capacity. The energy that is “lost” is primarily dissipated as heat (P = I2R), further stressing the cell.
An engineer must therefore ask: “What is the effective capacity of this cell under my application’s peak continuous discharge rate?” Relying on the nominal capacity figure without consulting the discharge curves for the relevant C-rate is a recipe for an undersized battery pack.
How Heat and Cold Alter LFP Performance
Temperature introduces another, often more potent, dimension to cell performance. Its effects are non-linear and impact everything from internal resistance to long-term degradation mechanisms.
1. Low-Temperature Operation (e.g., < 10°C)
As temperature drops, the viscosity of the electrolyte increases, dramatically slowing lithium-ion mobility. This elevates the charge transfer and diffusion resistance, leading to a severe increase in voltage polarization. The consequence is a drastic reduction in available power and capacity. At -20°C, an LFP cell might only be capable of delivering 50% of its rated capacity at a modest C-rate.[1] Attempting to charge an LFP cell below 0°C without precise current reduction protocols is malpractice, as it carries a high risk of lithium plating, which causes irreversible capacity loss and creates a pathway for internal short circuits.
2. High-Temperature Operation (e.g., > 40°C)
Elevated temperatures initially reduce internal resistance, seemingly improving performance. However, this is a dangerous trade-off. The Arrhenius equation dictates that the rate of chemical reactions—including parasitic, degradation-related reactions—doubles with approximately every 10°C increase. Sustained operation at high temperatures accelerates the growth of the Solid Electrolyte Interphase (SEI) layer on the anode. While a stable SEI layer is essential, excessive growth consumes lithium ions and electrolyte, leading to irreversible capacity fade and increased impedance.

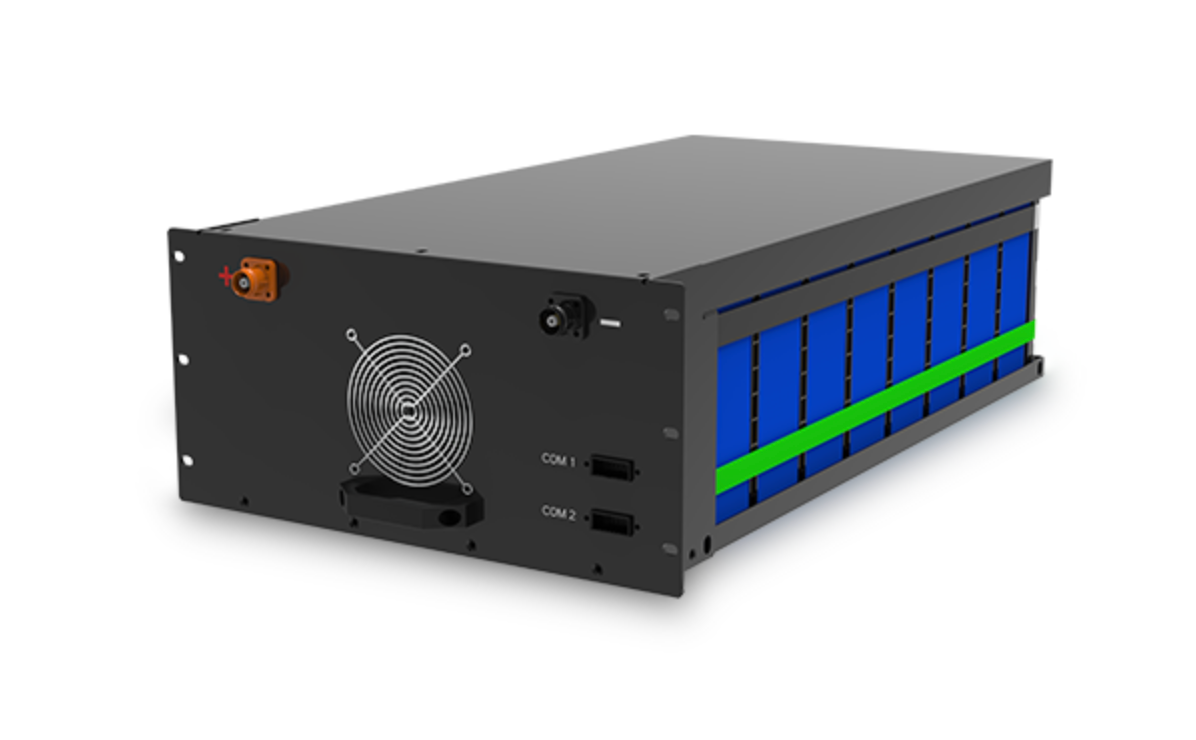

The Selection Matrix: A Practical Derating Approach
Effective cell selection is an exercise in derating. It requires moving beyond single-point specifications and mapping the application’s requirements onto the cell’s multi-dimensional performance data.
The Process:
- Define the Load Profile: Quantify the application’s continuous and peak C-rate demands.
- Define the Thermal Environment: Determine the full operational temperature range.
- Request Comprehensive Data: The crucial step is to obtain performance data from the cell manufacturer that characterizes the cell across your required C-rate and temperature matrix. This includes discharge curves at various C-rates for multiple temperature points (e.g., -20°C, 0°C, 25°C, 45°C) and, ideally, cycle life data under different stress conditions.
- Analyze and Derate: Using this data, determine the cell’s effective capacity and voltage performance at the worst-case operating points (e.g., highest C-rate at the lowest temperature for power, highest temperature for lifetime modeling). Design the system’s capacity and thermal management around these derated values, not the nominal datasheet figures.
The Importance of Data Transparency and Engineering Competence
This level of analysis is only possible when the cell manufacturer provides the necessary data with a high degree of transparency and reliability. The unfortunate reality is that comprehensive, multi-variable performance data is not always forthcoming in the industry. The burden of characterization and qualification is often pushed onto the system integrator.
This is where the engineering pedigree of the supplier becomes a critical selection criterion. A manufacturer’s true competence is demonstrated not by its marketing claims, but by its tangible solutions to these complex engineering challenges. When evaluating suppliers, look for evidence of deep electrochemical expertise:
- Do they offer specialized cell chemistries engineered for specific challenges, such as cells that maintain high capacity retention at -10°C or cells designed for sustained 10C discharge?
- Can they provide extensive, reliable datasets—including cycle life projections under various temperature and C-rate scenarios—that empower you to perform rigorous modeling?
- Is their manufacturing history, evidenced by large-scale, long-term deployments in demanding applications, indicative of a mature quality control and safety validation process?
A manufacturer like Great Power, for example, has built its reputation over two decades by solving these problems. Their consistent BNEF Tier 1 ranking and extensive deployment in the energy storage market are outcomes of this engineering focus. When a supplier can provide a cell with patented 6C fast-charging technology or one proven to operate in extreme climates, they are not just selling a product; they are providing a pre-validated engineering solution.
Conclusion
Ultimately, robust and reliable energy storage system design requires that we, as engineers, treat the cell not as a simple component, but as a complex electrochemical system. A deep understanding of the performance envelope defined by C-rate and temperature allows us to design with precision, mitigate risks, and build systems that perform reliably in the real world. The most critical partnership in this endeavor is with a cell manufacturer that shares this engineering-first mindset and provides the transparent, comprehensive data necessary to make informed decisions.
